2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550/2025 Toyota 4Runner Rear Billet Upper Link Kit Icon Vehicle Dynamics

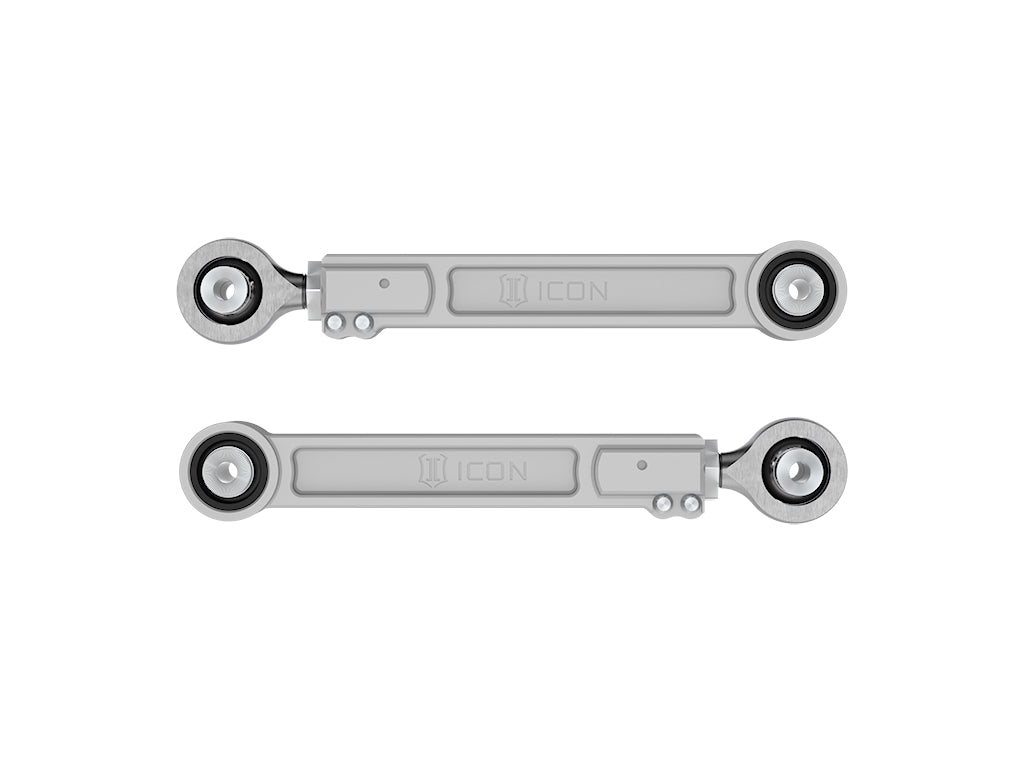

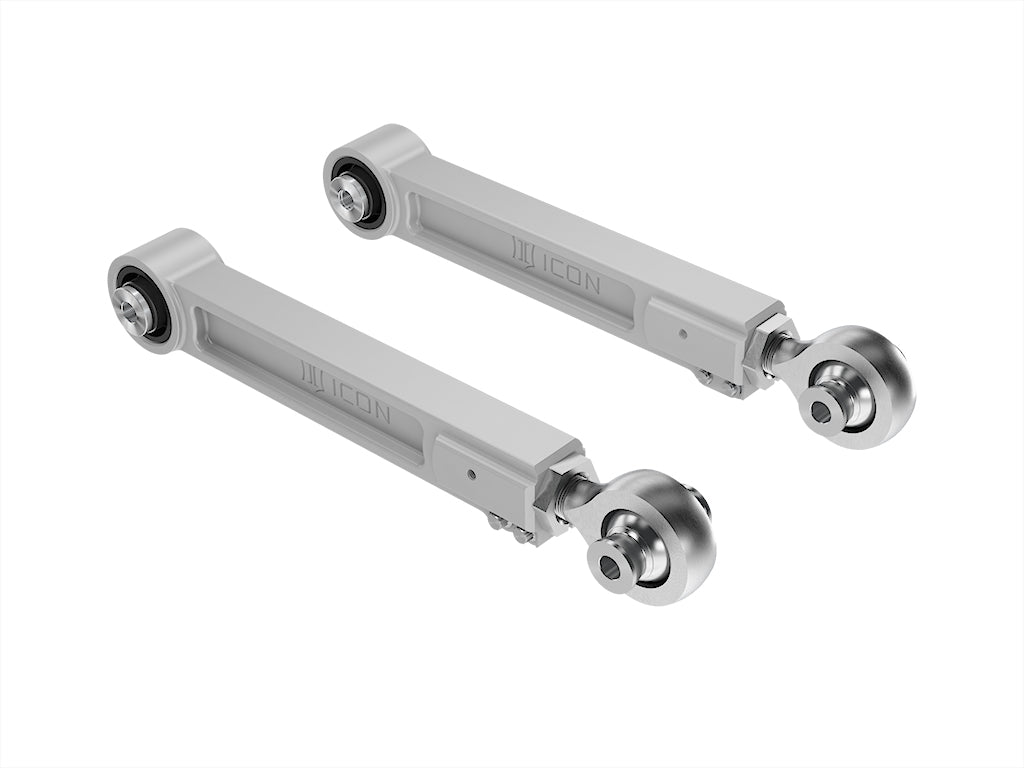

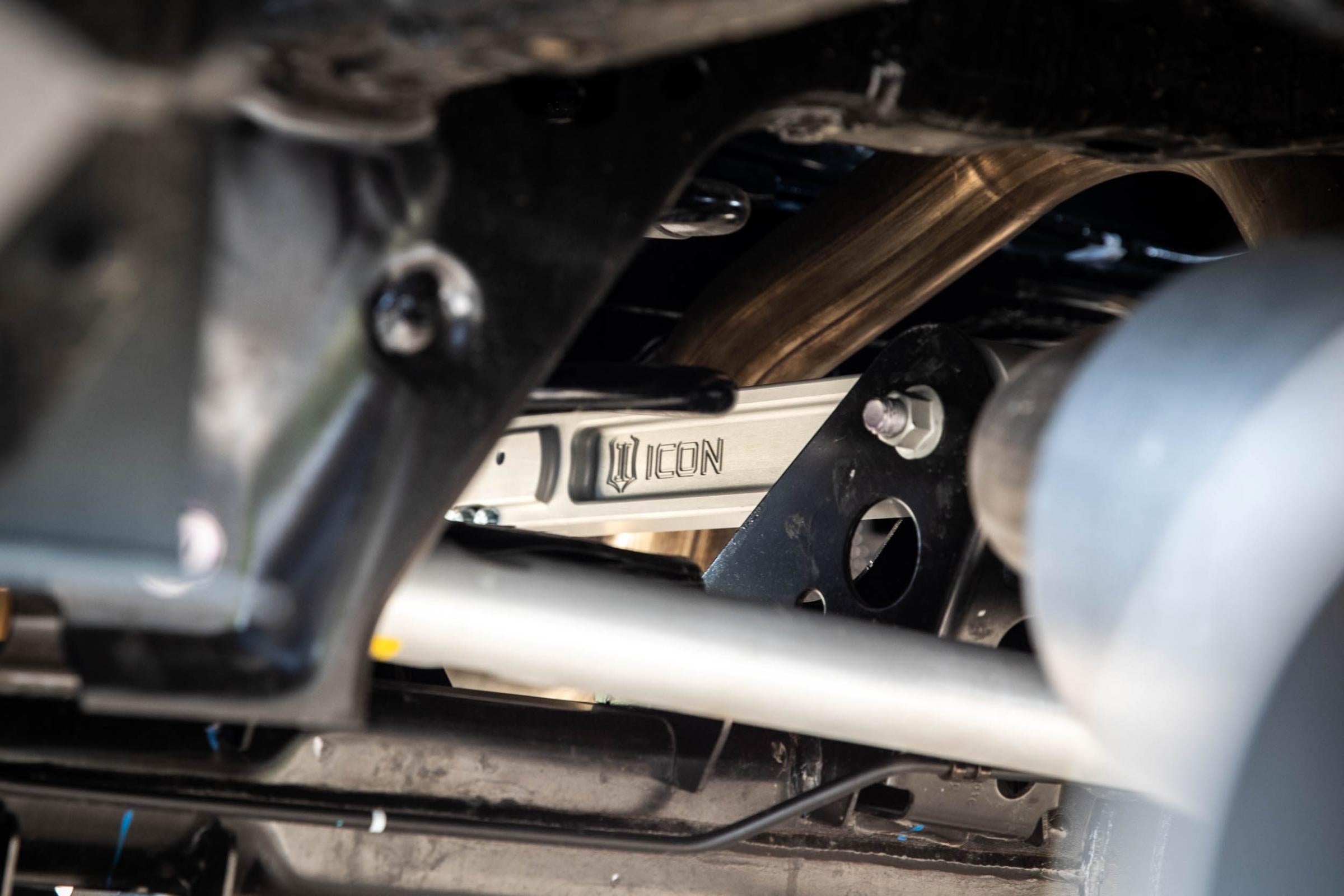

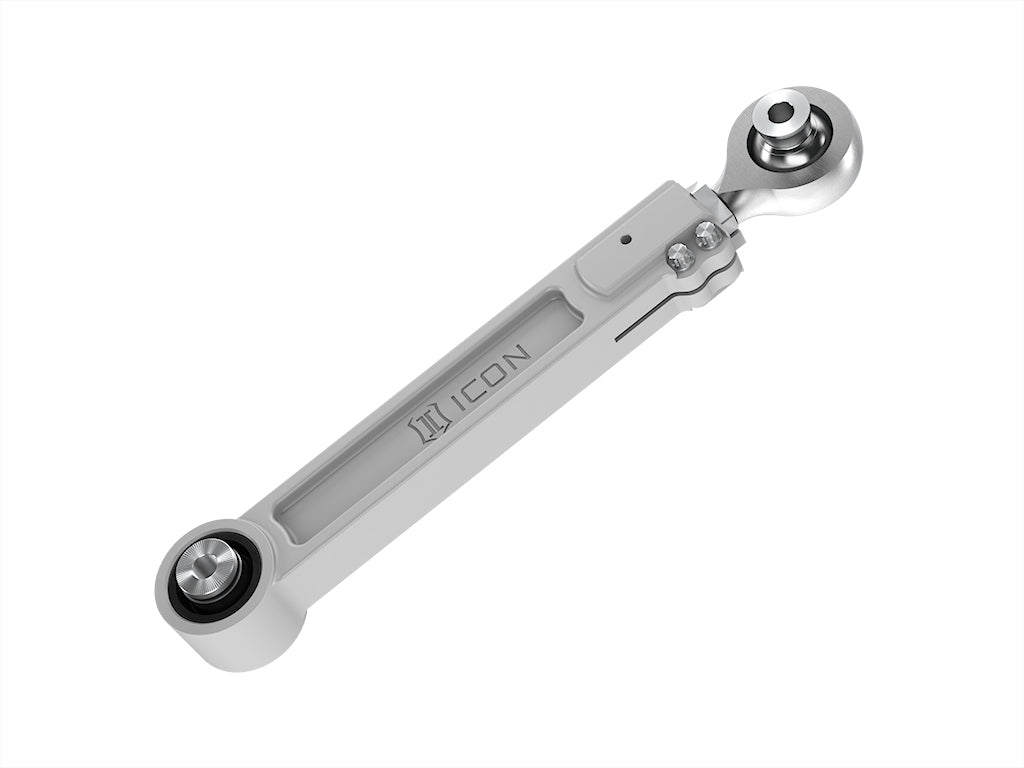

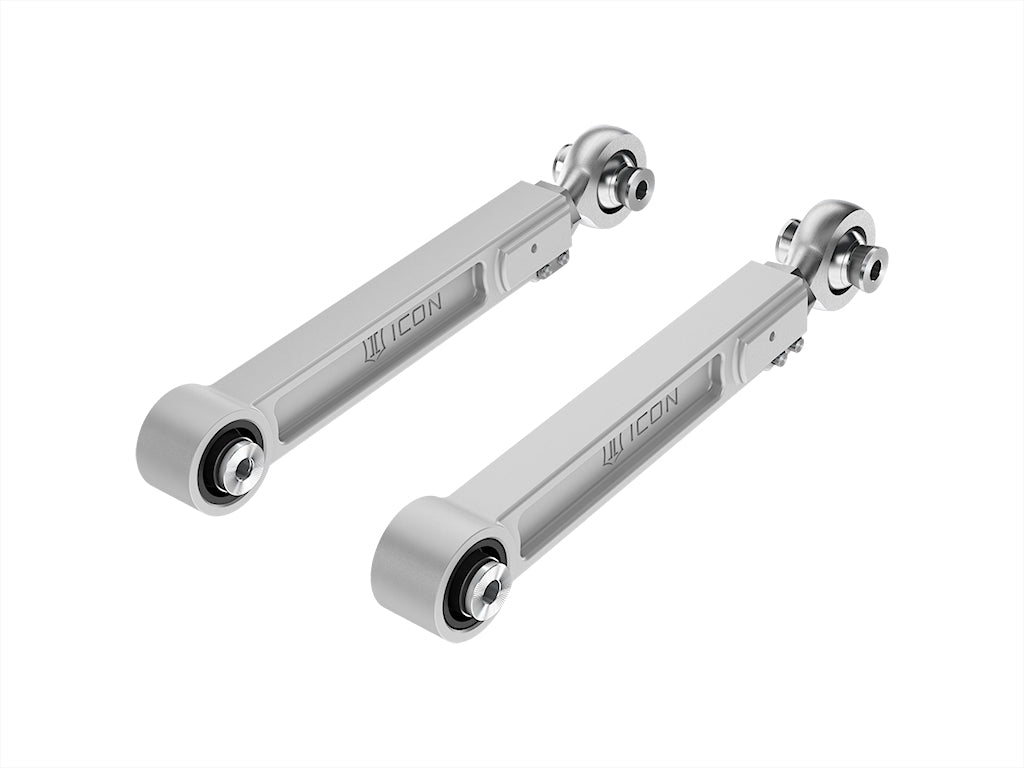

ICON's billet aluminum rear upper link arms for the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, and 2024-2025 Lexus GX550 are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units.

This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON's double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.

The quality rod ends and bushings featured in these link arms allow the vehicle's suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the InchICON1K Inch real-world test cycle for a final stamp of approval.

• Vehicle specific design
• On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
• CNC machined 6061 aluminum construction
• Large FK Bearing JMX16T PTFE-lined rod ends
• Maintenance free, dual durometer bushings for maximum angularity and noise isolation
• Covered by ICON's Limited Lifetime Warranty

• Color: Gray
• Material: Aluminum
• Finish: Anodized
• Adjustable: Yes
• Adjustable Control Arm: Yes
• Attachments Included: No
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Thread In
• Ball Joint Stud Type: Threaded
• Bushing Color: Black, Silver
• Bushing Material: Polyurethane, Rod End Bearing
• Bushings Included: Yes
• Construction: Billet
• Control Arm Color: Gray
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• End 1 Type: Bushing
• End 2 Type: Rod End Bearing
• Grade Type: Performance
• Grease Fitting Included: No
• Mounting Bracket Included: No
• Mounting Hardware Included: Yes
• Pre Assembled: Yes
• Pre Greased: No
• Quantity: Pair
• Reinforced: Yes
• Set: Yes
• Suspension Grade Type: Performance
• Suspension Type: Spring, Air
• Add On Part: 55153 - 22-25 Tundra/23-25 Sequoia Air Ride/Auto Headlight Bracket Kit, 54002 - 22-25 Tundra/23-25 Sequoia/24-25 Tacoma Billet Rear Lower Link Kit, 54003 - 24-25 Lc250/24-25 Gx550/25 4Runner Billet Rear Lower Link Kit, 55161 - 24-25 Lc250/24-25 Gx550 Rear Upper Link Sensor Bracket Kit

2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550/2025 Toyota 4Runner Rear Billet Upper Link Kit Icon Vehicle Dynamics

Specifications:

This Part Fits:
