ICON 0-3 Inch Lift Front V.S. 2.5 Series Coilover for 1995-2004 Toyota Tacoma
$1,518.35
Sale price
$1,518.35
Regular price
Skip to product information
ICON 0-3 Inch Lift Front V.S. 2.5 Series Coilover for 1995-2004 Toyota Tacoma
BRAND: ICON Vehicle Dynamics
$1,518.35
Sale price
$1,518.35
Regular price
At-A-Glance Overview
A quick visual summary to help you choose the right product for your build.
Comfort
4/5
Lift Height
3/5
Product Description

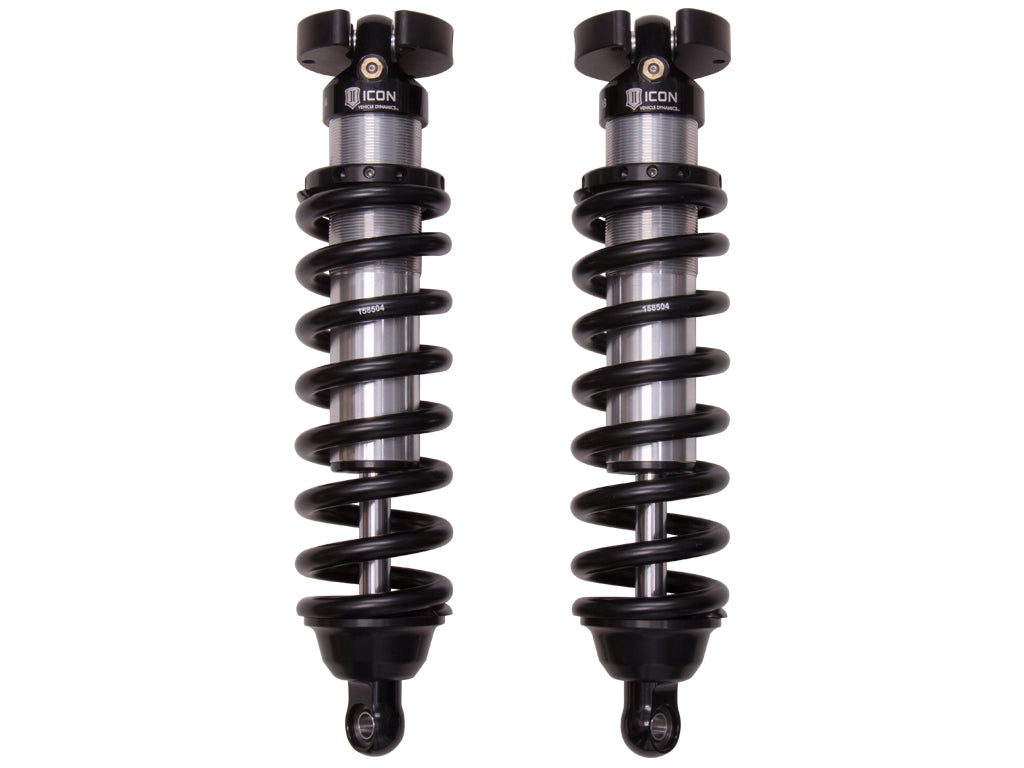

The ICON V.S. 2.5 Series Internal Reservoir Front Coilover delivers 0–3 inches of front lift for the 1995–2004 Toyota Tacoma (SR5, DLX, Pre Runner, Limited trims) and 1996–2002 Toyota 4Runner. This kit is built around a 2.5-inch cadmium-plated steel shock body with a 7/8-inch shaft and 5.36 inches of travel — specs that meaningfully outpace the factory setup. Digressive valving is calibrated specifically for these platforms, not pulled from a generic tune. Included 650 lb/in linear coil springs are ready to run out of the box.
We like that this unit is fully rebuildable — service parts including the 2.5 IFP rebuild kit and 7/8-inch replacement shaft are available separately, which matters for long-term cost of ownership. CNC-machined 6061 aircraft-grade aluminum components and FK rod end bearings keep deflection low and durability high.
One hard requirement: aftermarket front upper control arms are mandatory. ICON's 58500DJ Billet UCA or 58400DJ Tubular UCA are the verified bolt-in pairings for this application. On wheels, OEM fitment is confirmed; ICON Alloys in 17x8.5 or 18x9 at 0mm offset are the recommended upgrade spec. Tire clearance runs to 33x11.50 — larger rubber may fit with fender trimming. Round out the suspension with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced damping front to rear.
Specifications
| Material | Aluminum, Steel |
| Active Or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 Inch |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.5 |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 19.85 |
| Front Spring Rate | 650 Inch |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Maximum Lift | 3.0 Inch |
| Maximum Ride Height Raising Distance | 3.0 |
| Minimum Lift | 0.0 Inch |
| Oem Wheels & Tires Fitment | Yes |
| Remote Reservoir | No |
| Reservoir Style | Internal |
| Self Leveling | No |
| Shaft Diameter | 0.875 |
| Shock Absorber Body End Measuring Point | Top Of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center Of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.36 |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Recommended Tires | 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required) |
| Recommended Wheels | Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset |
| Add-On Parts | 58500DJ — 96-04 Tacoma/96-02 4RNR Billet UCA Dj Kit; 198001 — Billet Spanner Wrench Kit; 58400DJ — 96-04 Tacoma/96-02 4RNR Tubular UCA Dj Kit; 158508 — Coil Spring 1400.0300.0700 Black; 51045 — Toyota .25 Inch Bump Stop Spacer Kit; 198000 — 2 Pin Coilover Spanner Wrench Kit; 191003 — Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25) |
| Service Parts | 252004 — Economy Needle Charging Tool; 252001 — 2.5 Fixed Spanner Wrench; 254100G — 1 Gallon Icon Performance Shock Oil; 257301 — 7/8 Shaft 10.25 Oal, 6.00 Travel; 252010 — 2.5 Ifp Rebuild Kit; 252003 — Seal Install Tool 2.5/3.0; 611019 — Coilover Hardware Kit Pair; 252002 — Universal Spanner Wrench (2.0/2.5/3.0); 611067 — Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit |
This Part Fits
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1996 | Toyota | 4Runner | ||
| 1997 | Toyota | 4Runner | ||
| 1998 | Toyota | 4Runner | ||
| 1999 | Toyota | 4Runner | ||
| 2000 | Toyota | 4Runner | ||
| 2001 | Toyota | 4Runner | ||
| 2002 | Toyota | 4Runner | ||
| 1995 | Toyota | Tacoma | SR5 | |
| 1996 | Toyota | Tacoma | SR5 | |
| 1997 | Toyota | Tacoma | SR5 | |
| 1998 | Toyota | Tacoma | SR5 | |
| 1999 | Toyota | Tacoma | SR5 | |
| 2000 | Toyota | Tacoma | SR5 | |
| 1995 | Toyota | Tacoma | DLX | |
| 1996 | Toyota | Tacoma | DLX | |
| 1997 | Toyota | Tacoma | DLX | |
| 1998 | Toyota | Tacoma | DLX | |
| 1999 | Toyota | Tacoma | DLX | |
| 2000 | Toyota | Tacoma | DLX | |
| 2001 | Toyota | Tacoma | DLX | |
| 2002 | Toyota | Tacoma | DLX | |
| 2003 | Toyota | Tacoma | DLX | |
| 1995 | Toyota | Tacoma | ||
| 1996 | Toyota | Tacoma | ||
| 1997 | Toyota | Tacoma | ||
| 1998 | Toyota | Tacoma | ||
| 1999 | Toyota | Tacoma | ||
| 2000 | Toyota | Tacoma | ||
| 2001 | Toyota | Tacoma | ||
| 2002 | Toyota | Tacoma | ||
| 2003 | Toyota | Tacoma | ||
| 2004 | Toyota | Tacoma | ||
| 1998 | Toyota | Tacoma | Limited | |
| 1999 | Toyota | Tacoma | Limited | |
| 2000 | Toyota | Tacoma | Limited | |
| 1998 | Toyota | Tacoma | Pre Runner | |
| 1999 | Toyota | Tacoma | Pre Runner | |
| 2000 | Toyota | Tacoma | Pre Runner | |
| 2001 | Toyota | Tacoma | Pre Runner | |
| 2002 | Toyota | Tacoma | Pre Runner | |
| 2003 | Toyota | Tacoma | Pre Runner | |
| 2004 | Toyota | Tacoma | Pre Runner |
