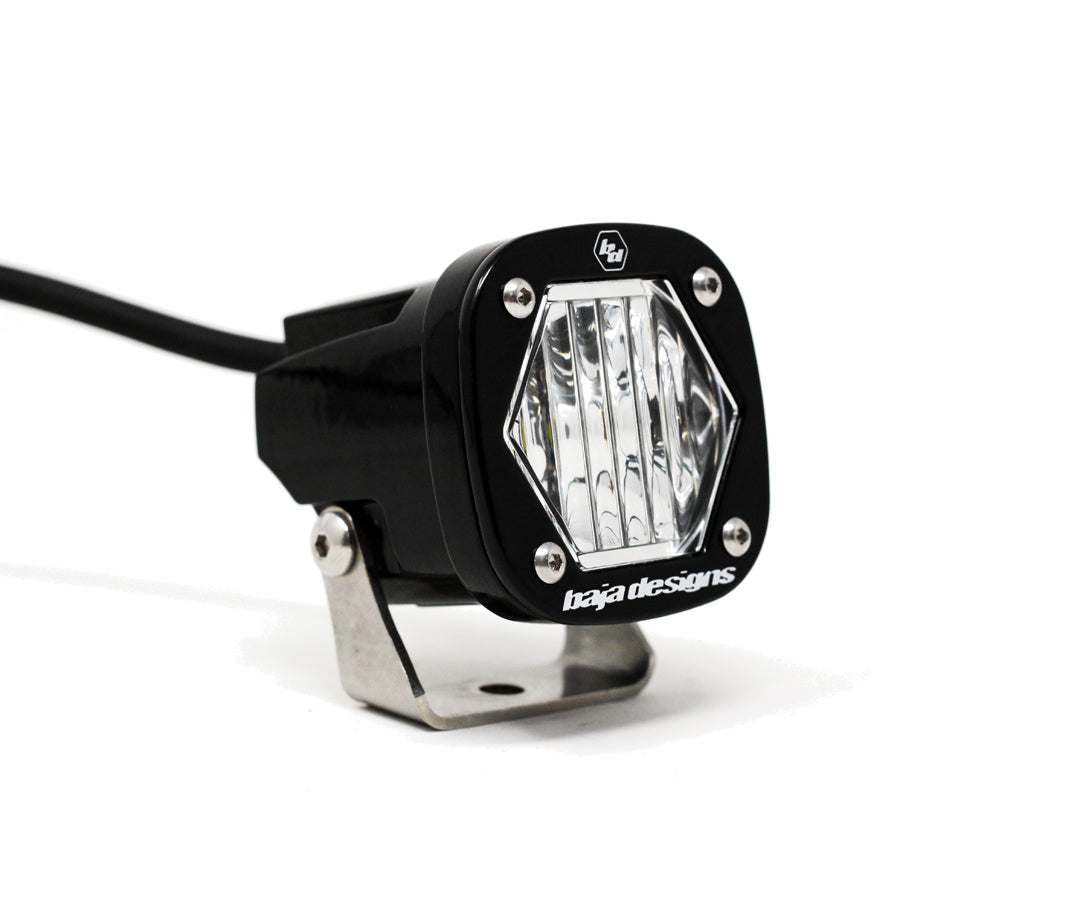

S1 Wide Cornering LED Light with Mounting Bracket Single Baja Designs

The Baja Designs S1 Wide Cornering LED Light Pod delivers 2,320 lumens from a housing that measures just 2.1 inches in length, width, and height. That combination of output and compact size is what makes this pod worth a close look — Baja Designs built it around a specialized reflector and LED pairing (US Patent 11273751) rather than simply scaling down a larger design.

The Wide Cornering lens produces a 42-degree flattened horizontal beam, which cuts down blind spots and improves peripheral coverage in lighting zones 1 and 2. That pattern is particularly effective in dust, snow, rain, or fog, and it helps you read tight turns and trail obstacles before you're on top of them. Running on 20W at 1.42A, and accepting 9-28V input, this pod draws efficiently and works across a wide voltage range.

Baja Designs backs it with a Limited Lifetime Warranty, a 30-Day Money Back Guarantee, and MoistureBlock waterproofing — submersible, not just splash-resistant. The 5000K daylight output reduces driver fatigue and keeps color rendering close to natural daylight. Lenses and optics are replaceable through Baja's uService program.

This listing is for a single light pod. A wiring harness is sold separately — the single-light 2-pin harness (64-0139) or the two-light 2-pin harness (640117) are the associated options. A 10 ft. harness extension (640165) is also available as an add-on.
